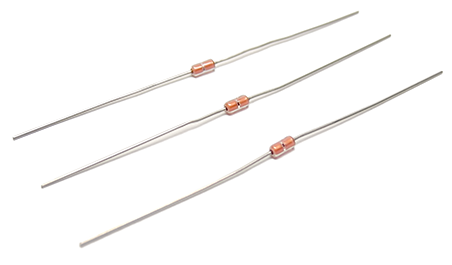

DT (Diode Glass)
- Glass encapsulation
- Rapid response
- Suitable for high temperature applications
- Excellent heat-resistance
- High stability
- RoHS Compliance
Description
The DT series thermistor is a thermistor sensor with a DO35 package, which possesses high reliability and offers a wide operating range of – 40°C to 250°C. They can be employed for home electric appliances and high temperature applications.
SPECIFICATION
| Item | Symbol | Conditions | Specification | Unit |
|---|---|---|---|---|
| Resistance at Ta | R25 | Ta = 25°C | 1,000 ~ 100,000 | Ω |
| B constant | B | 25°C / 85°C | 3100 ~ 4665 | K |
| Thermal dissipation constant | C | Ta = 25°C | 2 | mW/°C |
| Thermal time constant | T | Ta = 25°C | 20 | sec |
| Operating temperature | — | — | – 30 ~ 250 | °C |
ORDERING INFORMATION
| ES | DT | 103 | H | 3435 | F |
| E WAY Sensor | Diode Type Thermistor | Resistance at 25°C: 102 = 10×10² = 1,000Ω 103 = 10×10³ = 10,000Ω 104 = 10×10⁴ = 100,000Ω |
R Tolerance: F:±1% G:±2% H:±3% J:±5% K:±10% |
B Value(K): | B Tolerance: F:±1% G:±2% H:±3% J:±5% |
