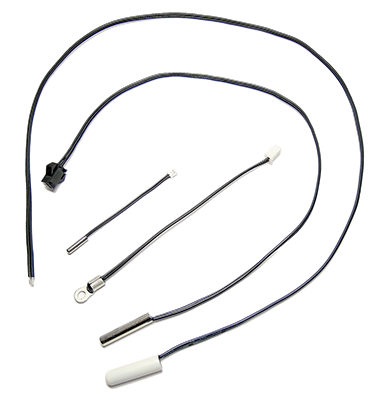

E WAY’s NTC thermistors with R-T curves accurately matched are interchangeable thermistors precisely designed for high quality to provide accurate and stable temperature sensing capability for temperature measurement and/or compensation. They are presented in small, epoxy encapsulated radial leaded assemblies, with various wires and housings for different applications. We provide customized NTC Sensors in accordance with a variety of requirements.

Icon Triangle

SPECIFICATION

Housing Material Appearance
AB ABS
AL Aluminum
BR Brass
ER Epoxy Resin
NP Nickle Plate
PS Polyacetal Sleeve
SR Silicon Resin
SS Stainless Steel
TC Tin Copper
Icon Triangle

ORDERING INFORMATION

ES ER 103 H 3435 F 26 110 S C
E WAY Sensor Housing Type:
AB ABS
AL Aluminum
BR Brass
ER Epoxy Resin
NP Nickel Plate
PH Phenolic
PS Polyacetal Sleeve
SR Silicon Resin
SS Stainless Steel
TC Tin Copper
TF Thin Film
OT Others
Resistance at 25°C:
102 = 10×10² = 1,000Ω
103 = 10×10³ = 10,000Ω
104 = 10×10⁴ = 100,000Ω
R Tolerance:
F:±1%
G:±2%
H:±3%
J:±5%
K:±10%
B Value (K) : B Tolerance :
F:±1%
G:±2%
H:±3%
J:±5%
Wire Gauge:
22 = 22AWG
26 = 26AWG
30 = 30AWG
Length (wire) :
040 = 40 mm
110 = 110 mm
Wire type:
S : Separate
C : Connect
D : Differ
Wire UL Type :
A UL1430
B UL1571
C UL3302 HF
D UL2468
E UL2651
F UL1332 Teflon
G UL10362 Teflon
H UL 4469 HF
I 200°C Teflon
J Alloy 180
K UL1685
L UL3302 HF(twist)
M UL4469 HF(twist)
P UL2651(twist)
O Others
