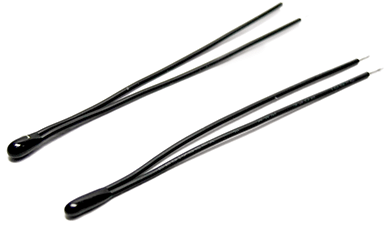

TA4 (Epoxy Coated Type)
- Epoxy coated, excellent strength
- Insulated wire can be bent as per installation conditions
- Excellent thermal cycle endurance
- RoHS Compliantce
- Customized wire length
- No need to adjust between the control circuit and the sensor
- High stability
Description
The TA4 series thermistor is a high-precision thermal sensing device which is similar to HT series thermistor but different with flexible lead wires.
SPECIFICATION
| Item | Symbol | Conditions | Specification | Unit |
|---|---|---|---|---|
| Resistance at Ta | R25 | Ta = 25°C | 1,000 ~ 100,000 | Ω |
| B constant | B | 25°C / 85°C | 3100 ~ 4665 | K |
| Thermal dissipation constant | C | Ta = 25°C | 2.5 | mW/°C |
| Thermal time constant | T | Ta = 25°C | 15 | sec |
| Operating temperature | — | — | -10 ~ 105 | °C |
ORDERING INFORMATION
| ES | TA4 | 103 | H | 3435 | F | 26 | 050 | 21 | S | C |
| E WAY Sensor | TA4 Series Thermistor | Resistance at 25°C: 102 = 10×10² = 1,000Ω 103 = 10×10³ = 10,000Ω 104 = 10×10⁴ = 100,000Ω |
R Tolerance: F:±1% G:±2% H:±3% J:±5% K:±10% |
B Value(K): | B Tolerance: F:±1% G:±2% H:±3% J:±5% |
Wire Gauge: 26=26AWG 30=30AWG 32=32AWG |
Length(all): 050=50mm 400=400mm 1400=1400mm (when length> 999 mm) |
Solder Length and Tolerance : 21=2±1mm 31=3±1mm 2A=2±0.5mm |
Wire Type : S:Separate C:Connect D:Differ |
Wire UL Type : A UL1430 B UL1571 C UL3302 HF D UL2468 E UL2651 F UL1332 Teflon G UL10362 Teflon H UL 4469 HF I 200°C Teflon J Alloy 180 K UL1685 L UL3302 HF(twist) M UL4469 HF(twist) P UL2651(twist) O Others |
