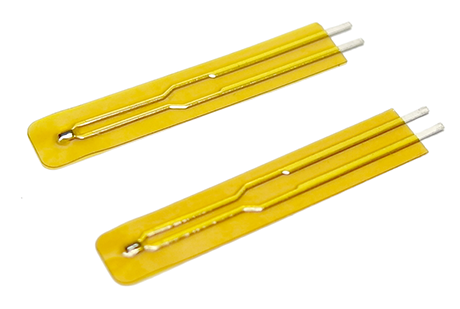

TJ (Film Type)
- Small body size, fast response
- Enameled wire, bendable
- High stability
- RoHS Compliance
- Epoxy coated, excellent strength
- Customized length
- Excellent thermal cycle endurance
Description
The TS series thermistor is smaller than the HT series thermistor. Its rapid response time and high reliability make it suitable for use in medical equipments and thermometers.
SPECIFICATION
| Item | Symbol | Conditions | Specification | Unit |
|---|---|---|---|---|
| Resistance at Ta | R25 | Ta = 25°C | 1,000 ~ 100,000 | Ω |
| B constant | B | 25°C / 85°C | 3100 ~ 4665 | K |
| Thermal dissipation constant | C | Ta = 25°C | 0.7 | mW/°C |
| Thermal time constant | T | Ta = 25°C | 3.2 | sec |
| Operating temperature | — | — | – 30 ~ 105 | °C |
ORDERING INFORMATION
| ES | TS | 103 | H | 3435 | F– | 20 | 040 | 21 |
| E WAY Sensor | Temperature Sensing Thermistor | Resistance at 25°C : 102 = 10×10² = 1,000Ω 103 = 10×10³ = 10,000Ω 104 = 10×10⁴ = 100,000Ω |
R Tolerance: F:±1% G:±2% H:±3% J:±5% K:±10% |
B Value(K) : | B Tolerance: F:±1% G:±2% H:±3% J:±5% |
Wire Gauge: 20=ø 2.0mm |
Length(all): 040=40 mm |
Solder Length and Tolerance: 21=2±1mm 31=3±1mm |
