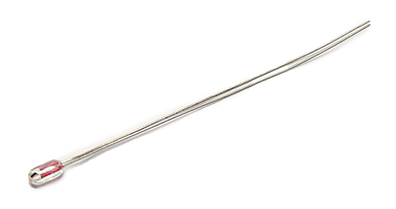

GS (Glass Bead)
![img_rohs Img Rohs](http://en.ewaytech.com.tw/wp-content/uploads/2021/03/img_rohs-150x150.png)
- Glass encapsulation
- Excellent heat-resistance
- Rapid response
- Suitable for wide temperature range
- High stability
- RoHS Compliance
![icon_triangle Icon Triangle](http://en.ewaytech.com.tw/wp-content/uploads/2021/03/icon_triangle.png)
Description
The GS series thermistor is a thermistor sensor with a glass encapsulated package, which possesses high reliability and offers a wide operating range of -40°C to 250°C. They can be employed for home electric appliances and high temperature applications.
![img_d_gs Img D Gs](http://en.ewaytech.com.tw/wp-content/uploads/2021/03/img_d_gs.png)
![icon_triangle Icon Triangle](http://en.ewaytech.com.tw/wp-content/uploads/2021/03/icon_triangle.png)
SPECIFICATION
Item | Symbol | Conditions | Specification | Unit |
---|---|---|---|---|
Resistance at Ta | R25 | Ta = 25°C | 1,000 ~ 100,000 | Ω |
B constant | B | 25°C / 85°C | 3100 ~ 4665 | K |
Thermal dissipation constant | C | Ta = 25°C | 1 | mW/°C |
Thermal time constant | T | Ta = 25°C | 5 | sec |
Operating temperature | — | — | -40 ~ 250 | °C |
![icon_triangle Icon Triangle](http://en.ewaytech.com.tw/wp-content/uploads/2021/03/icon_triangle.png)
ORDERING INFORMATION
ES | GS | 103 | H | 3435 | F | 25 | 32 |
E WAY Sensor | Glass Sealed Themistor | Resistance at 25°C: 102 = 10×10² = 1,000Ω 103 = 10×10³ = 10,000Ω 104 = 10×10⁴ = 100,000Ω |
R Tolerance: F:±1% G:±2% H:±3% J:±5% K:±10% |
B Value(K): | B Tolerance: F:±1% G:±2% H:±3% J:±5% |
Wire Gauge: 25=ø 0.25 mm |
Length(wire): 32=32 mm |
